aluminum u channel glass railing

  • Stainless steel handrail aluminium U channel glass railing for balcony
Stainless steel handrail aluminium U channel glass railing for balcony

Stainless steel handrail aluminium U channel glass railing for balcony

  • stainless steel handrail
  • u channel glass railing
  • glass railing for balcony
  • glass railing with top handrail
  • Description: Products can be customized as per your measurement and requirement. No MOQ required.
  • Inquiry


Stainless steel handrail aluminium U channel glass railing for balcony


Specification:

Item
Material
(Component & Size (mm))
Finish
Glass Panel
Tempered Glass
10mm/ 12mm tempered clear glass, polished edges
Clear/ Frosted/ Tinted

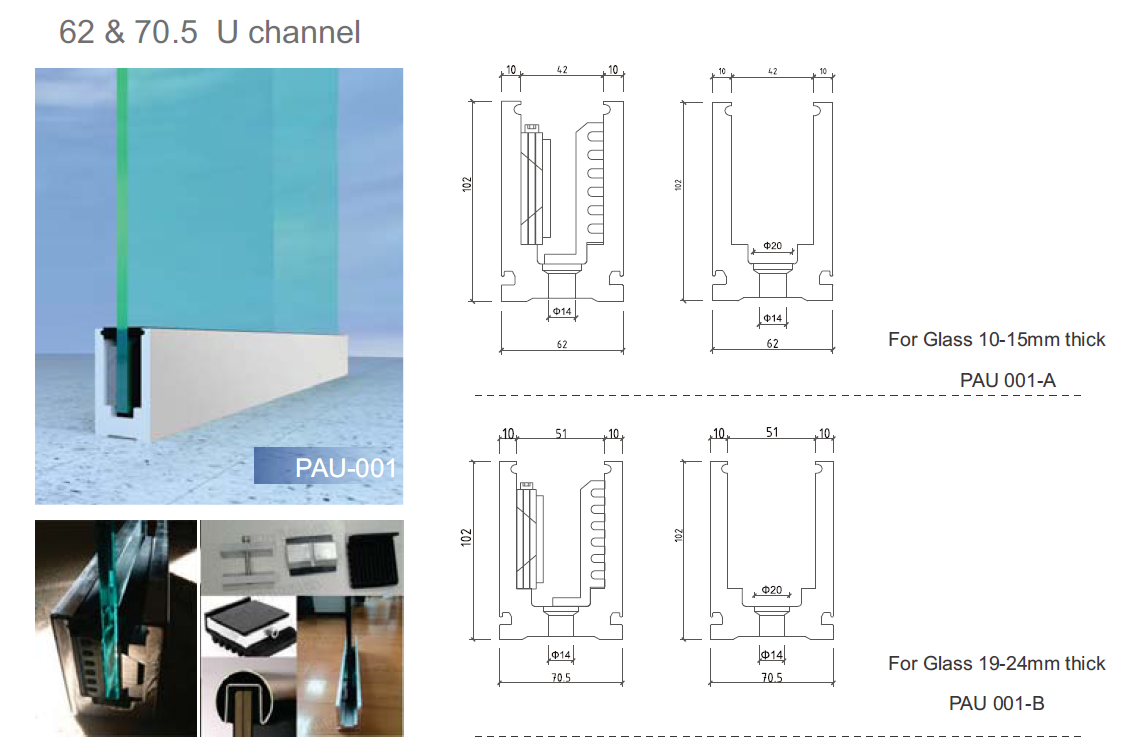

U channel
Aluminum
102*62mm    - Suit for Glass 10-15mm
102*70.5mm - Suit for Glass 16-24mm

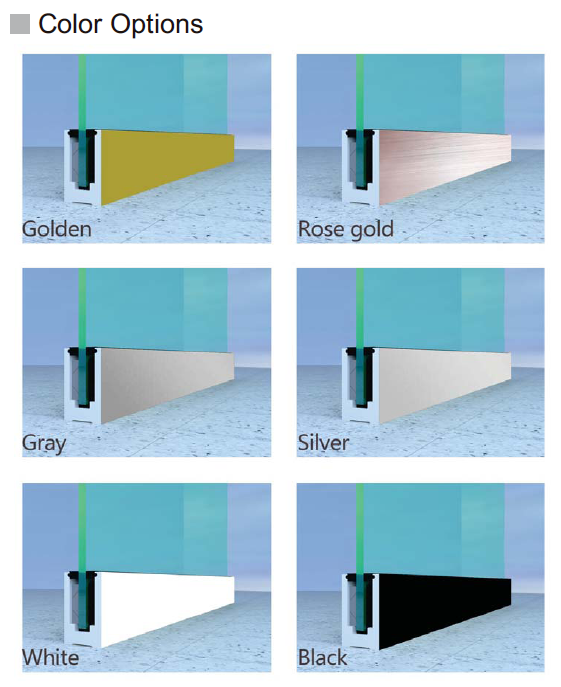

Anodized
Top Handrail
304s.s
Diameter 38/42.4/50.8mm top handrail
Brushed / Polished
Handrail Connector
90 degree /180 degree / Flexible handrail connector
Cladding
Cladding for Aluminum U channel (optional)
Handrail Accessories
304s.s standard accessories(Including End cap, wall flange and handrail connectors)
Rubber +panel grip
/ Rubber +grip panel, 3 sets per meter
/






About

The height/material/dimension all can be customized.

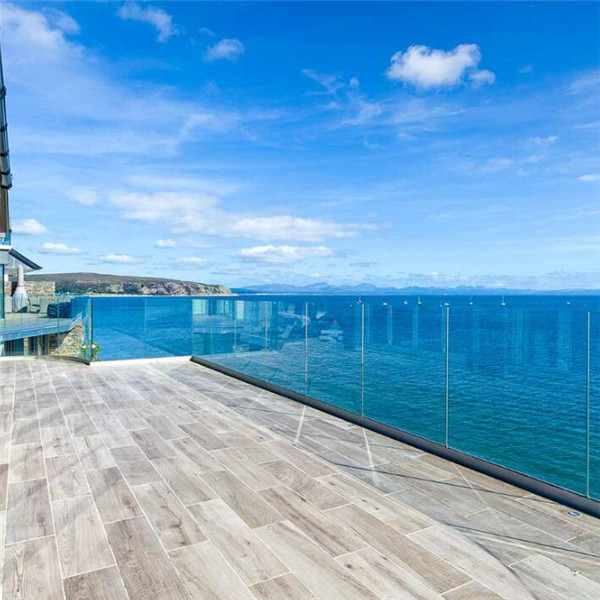

This u channel railing design is widely used for balcony, also can used for deck,veranda,porch,and staircase.

Only needs to provide the dimension or send the project drawing then we can provide the quote.

If you do not have the project drawing,we can design it for you as well.


Main Features

* Simple structure in linear type,easy in installation and maintenance.

*Adopting advanced world famous brand components in pneumatic parts,electric parts and operation parts.

*High pressure double crank to control the die opening and closing.
